FromThe Crayfish, by T. H. Huxley, 1879

Figure 20

fig. 20, chela of forceps

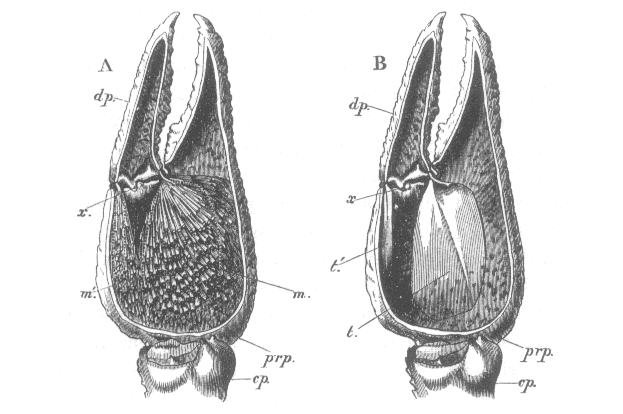

FIG. 20.--Astacus fluviatilis.--The chela of the forceps, with one side cut away to show, in A, the muscles, in B, the tendons ( x 2). cp, carpopodite; prp, propodite; dp, dactylopodite; m, adductor muscle; m', abductor muscle; t, tendon of adductor muscle; t', tendon of abductor muscle; x, hinge.

[Editor's note: illustration is reproduced here approximately twice the size of the woodcut in the book.]
